Self-supporting single sheet panel with polyurethane foam insulation used for low slope roofs.
Mono Mega 106 Deck is a single-sheeted self-bearing panel with insulation in poliurethane foam intended for low-slope roofing.

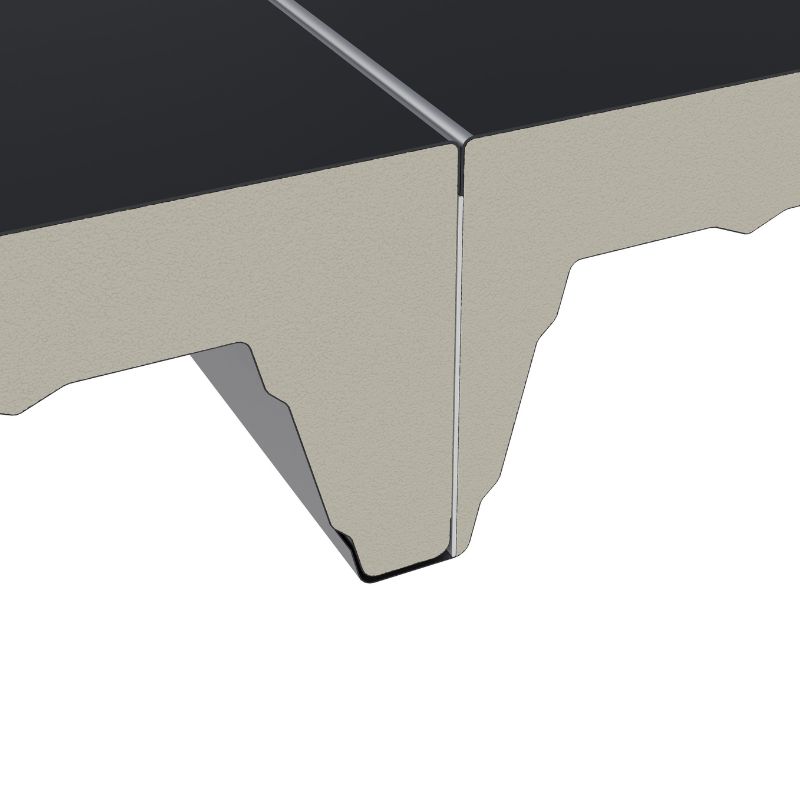

The panel is made up on the inside by a corrugated steel support and on the outside by a bituminous felt-paper .
The panel has to be assembled with the ribs facing down and must be waterproofed on site with a bituminous sheath . The height of the rib being 106mm does allow the panel to reach a high mechanical resistance.
4 ribs, ribs’ height 106 mm, ribs’ breath 333 mm
Working width: 1.000 mm
Thicknesses (mm): 50-80-100-120-150
