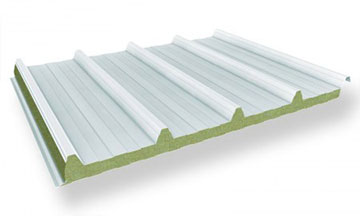

5 ribs, 40 mm ribs eight, 250 mm ribs step
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150-200
Fire resistance according toUNI EN 13501-2 (*):
Th. 50 mm – R.E.I. 30 – Assembled as roof panel;
Th. 80 mm – R.E.I. 60 – Assembled as roof panel;
Th. 100 mm – R.E.I. 120 – Assembled as roof panel;
Th. 120 mm – E.I. 120 – Assembled as ceiling panel;
Fire reaction according to UNI EN 13501-1:
A2-S1-d0
(*) Carefully follow the assembling instructions given in the certification test report.
About sound insulation characteristics pls refer to certifications table file.
